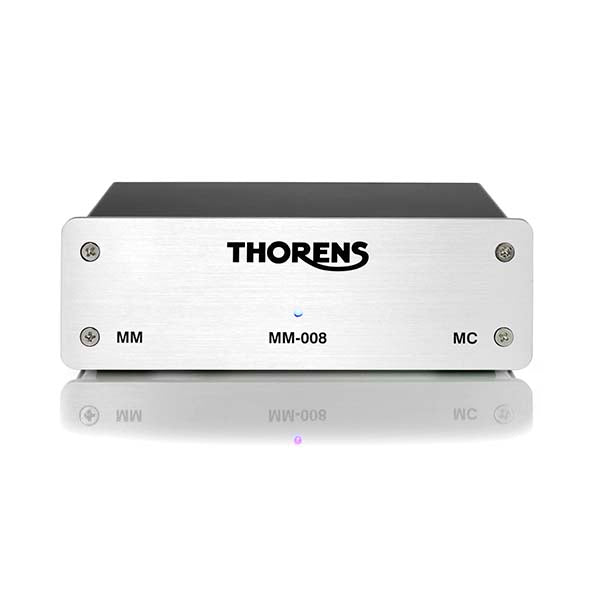

[Thorens] MM-008 MM/MC Phono Preamplifier

by Thorens
$3,200.00
SKU
Mode : MM/MC (switchable)
Gain at 1 kHz : 40 dB (MM)/60 dB (MC)
Input impedance (MM) : 47 kΩ + 220 pF fixed
Input impedance (MC) : 47 kΩ + 1 nF (modifiable with external load plugs)
Frequency response (flat) : 20 Hz - 20 kHz ±0.3 dB
Frequency response (-3 dB) : 10 Hz - 50 kHz
RIAA curve accuracy : ±0.3 dB
THD+N : <0.013% (MM)/<0.055% (MC)
Signal-to-noise ratio : >86 dB (MM)/>72 dB (MC)
Crosstalk : ≧40 dB
Input sensitivity (MM) : 3.29 mVrms for -10 dBV output (316 mVrms)
Input sensitivity (MC) : 0.325 mVrms for -10 dBV output (316 mVrms)
Max. output voltage : 482 mVrms at 5 mVrms input (1 kHz)
Output impedance : 47 Ω
Input connections : 3 pairs of RCA sockets (left/right)
Output connections : 1 pair of RCA sockets (left/right)
Power supply : 24 V DC
Power consumption : 3.4 W/15 mA
Weight : 504 g (not including power supply)
Dimensions (W x H x D) : 150 x 50 x 117 mm
